formlabs / The Form Studio 1 SLA Ecosystem
Professional Resin Printing For Anyone

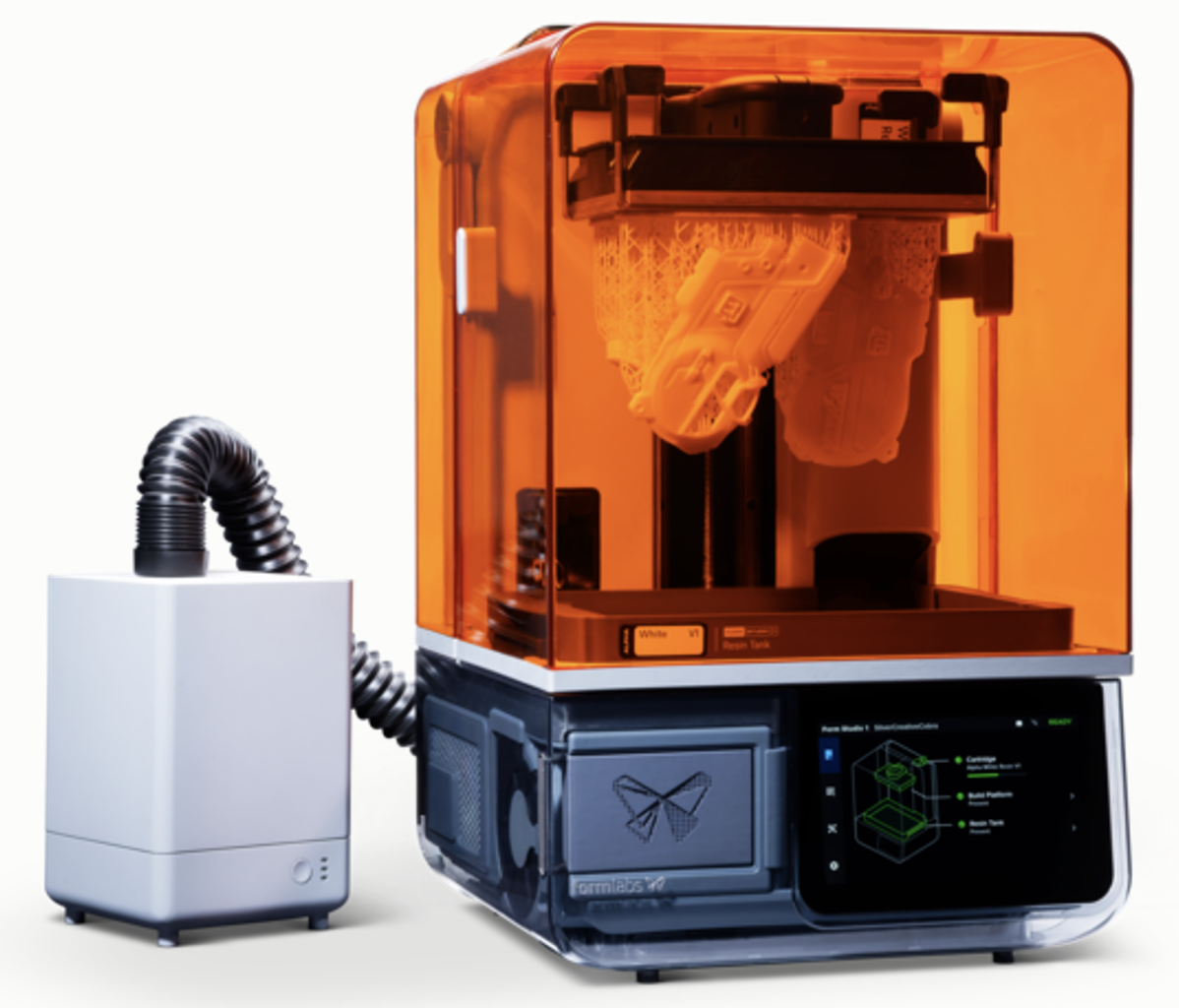

The Form Studio 1 SLA Ecosystem
- Blazing fast: most parts print in under two hours, with speeds up to 130 mm/h on Alpha Fast Resin
-
Amazing parts: a 35 µm pixel, anti-aliasing, and resins tuned to the light engine deliver sharp edges and smooth surfaces
-
Automatic resin handling: integrated, hands-free dispensing with glove-free material swaps in under a minute
-
Open platform: Open Material Mode is included, so customers can print in any 405 nm resin with no license fee
-
Reliable by design: five intelligent control systems monitor temperature, resin level, print force, and print status on every job
Talk to an additive expert about the Form Studio 1 SLA ecosystem

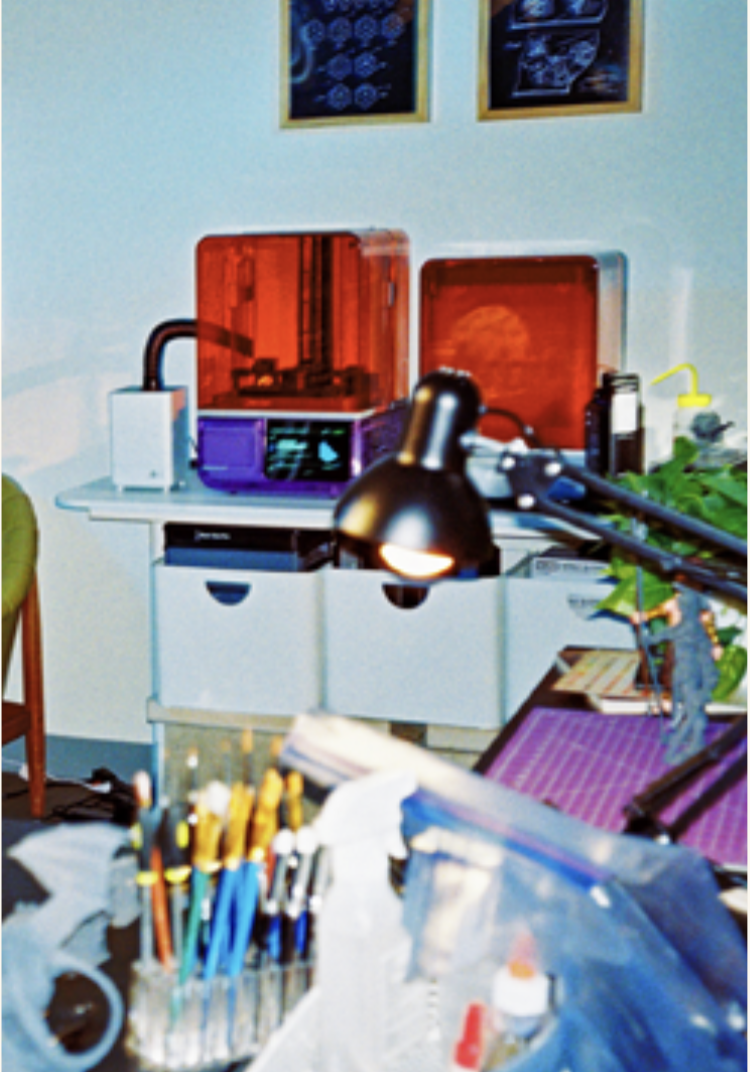

Office, Home, Studio, Workshop…
A resin printer that’s safe to use wherever you work.
LOW VOC EMISSIONS
Printing with Alpha Resins are UL GREENGUARD Gold* certified, an independent standard certifying low VOC emis-sions for homes, offices, schools, and other indoor environments.
SKIN-SAFE PARTS
Alpha Resins are certified to ISO 10993 for long-term (>30 days) skin contact when printed on Form Studio 1 and post-processed per Formlabs guidelines. Printed parts are non-cytotoxic, non-irritating, and non-sensitizing.
MINIMIZE RISKS
Liquid resin scored as non-skin irritant according to OECD 439, a standard commonly used in cosmetics industry, to minimize the risks from incidental skin contact with resin.
Learn to print in 10 minutes.
01 CHOOSE A MATERIAL
Choose from one of the industry-leading validated Formlabs materials or print in any third-party resin.

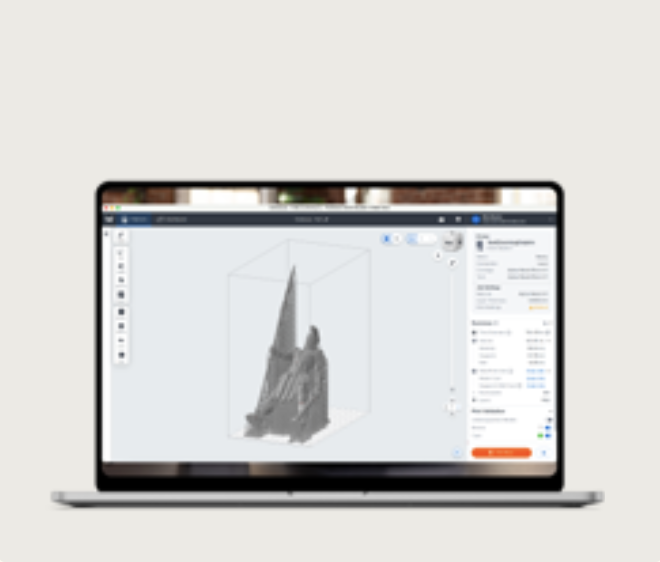

02 PREPARE
Go from a design to printing in minutes with just a few clicks using our free PreForm software.

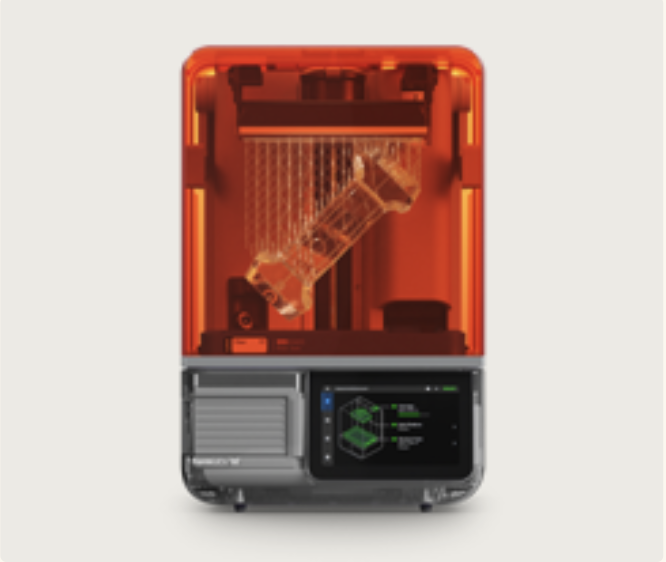

03 PRINT
Queue jobs, track print progress, give feedback, and start prints remotely using the free Dashboard software or the Form Mobile App.
04 POST-PROCESS
Finish your prints in one place. Easy, effective post-processing with quick-release Build Platform Flex and the all-in-one Form Studio Wash+Cure.

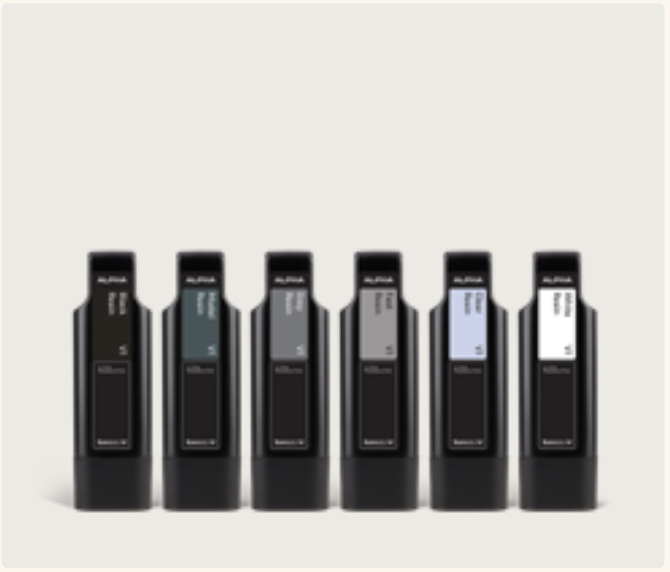

Alpha Resins
Next-Generation General Purpose Resins

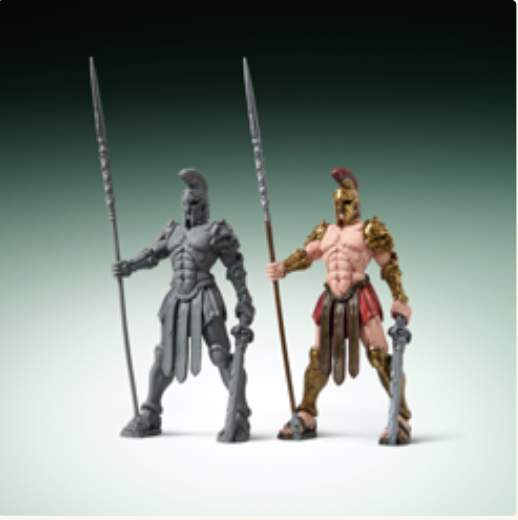

Alpha Model Resin
deep, fully matte, neutral surface that captures every detail, down to the smallest crevice and texture, and paints beautifully
Alpha Fast Resin
deep, fully matte, neutral surface that captures every detail, down to the smallest crevice and texture, and paints beautifully

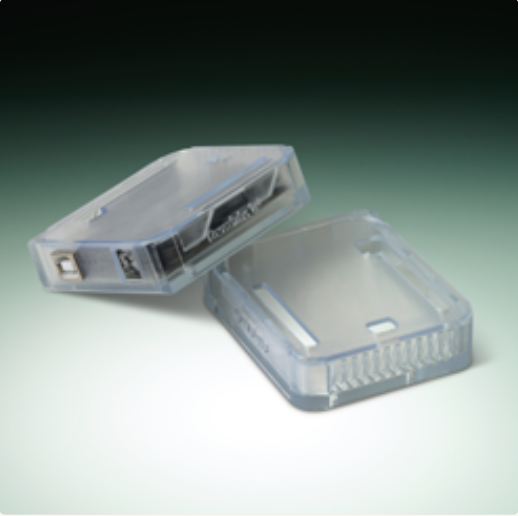

Alpha Clear Resin
deep, fully matte, neutral surface that captures every detail, down to the smallest crevice and texture, and paints beautifully
Alpha Black, Grey and White Resin
deep, fully matte, neutral surface that captures every detail, down to the smallest crevice and texture, and paints beautifully
Tech Specs
Technology
Build Volume
Layer Thickness
XY Resolution
Average Print Speed
Maximum Print Speed
Resin Tanks Lifetime
Printer Weight
Printer Dimensions
Warranty And Service
Software Compatibility
Files Accepted
Masked Stereolithography (MSLA)
20.0 x 12.5 x 23.5 cm | 7.9 x 4.9 x 9.3 in
25–250 µm | 0.001–0.010 in
35µm
40 mm/hr
130 mm/hr
75,000 layers with Formlabs materials
14.3 kg | 31.5 lb
34.2 x 31.5 x 50.2 cm | 13.5 x 12.4 x 19.8 in
One-year warranty included
Paid service and extended warranty options available
Mac OS X 10.12 and up
Windows 10, 64-bit (version 1809) and up
Mesh files (STL, OBJ, 3MF)
STEP files (STEP, STP, STPZ)
SOLIDWORKS files (SLDPRT, SLDASM)
PTC Creo files (PRT, ASM)
Jupiter Tessellation files (JT)
CATIA V5 files (CATPart, CATProduct)
Additional Technology

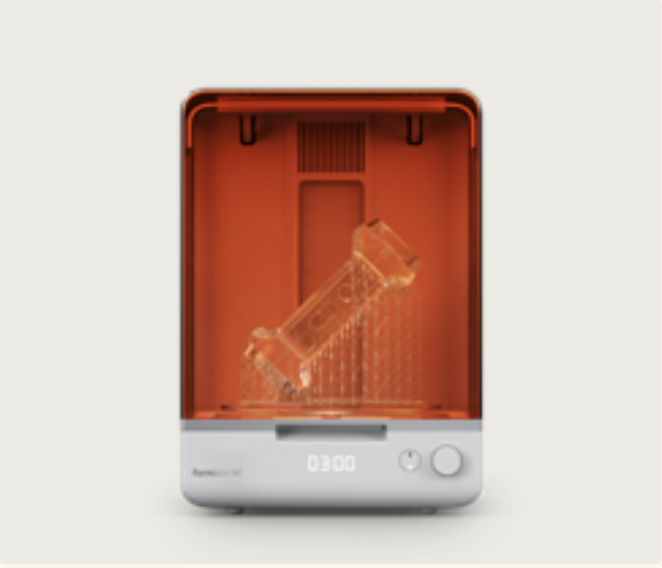

Form Studio Wash+Cure
Form Studio Wash+Cure is an all-in-one, compact, and affordable post-processing unit that handles both washing and curing for your resin 3D prints.
Washing mode: All resin 3D printed parts need washing to remove residual resin. Form Studio Wash+Cure agitates IPA or alternative solvents around parts for thorough, efficient cleaning. When washing is done, simply raise the internal basket out of the solvent to let parts air dry and avoid over-soaking, warped prints.
Curing mode: Using 405 nm light, Form Studio Wash+Cure completes the chemical reaction started during printing. Post-curing boosts part strength, toughness, heat resistance, and creep resistance, while leaving a harder, less tacky surface.
Form Studio Wash+Cure is compatible with IPA, TPM, and Resin Washing Solution.

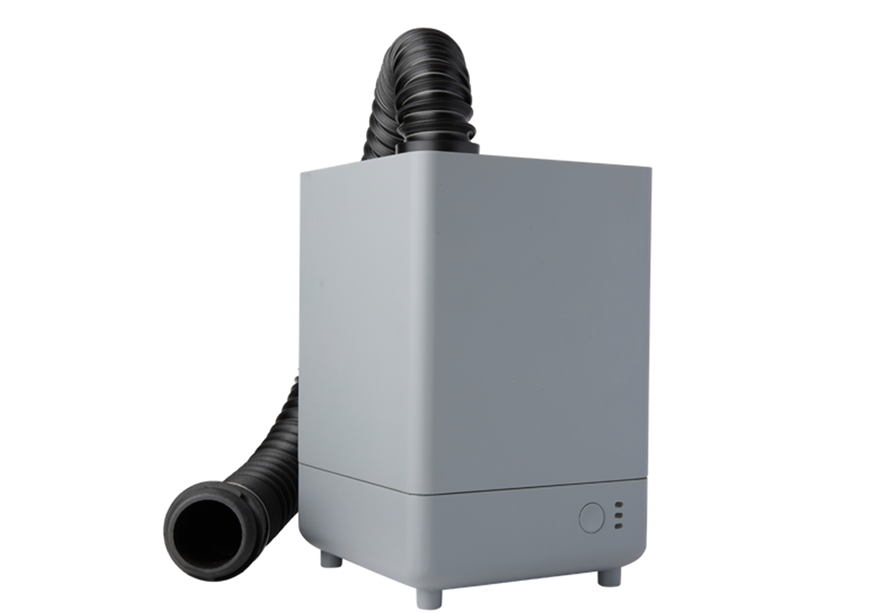

VOC Extractor
VOC Extractor is a compact add-on that reduces volatile organic compound levels while your printer runs. Air passes through two carbon filters, lasting roughly 330hours of print time and replaceable in seconds. Three fan speeds let you match airflow to your needs.
Compatible with Form Studio 1 and Form 4. ULGREENGUARD Gold Certification applies to Form Studio 1used with Alpha Resins.
