Understanding Fatigue Analysis in Engineering Design

In today’s demanding manufacturing environments, fatigue analysis stands as a cornerstone of reliable engineering design. This process evaluates how materials degrade under repeated cyclic loads, predicting component longevity before production begins. For instance, in automotive manufacturing, engineers use tools like SOLIDWORKS to assess suspension parts that endure millions of stress cycles from road vibrations, preventing costly failures down the line.

Fatigue refers to the progressive structural damage that occurs when a material is subjected to fluctuating stresses over time, even if those stresses remain below the material’s ultimate strength. Without proper evaluation, unexpected fractures can compromise safety and performance in critical sectors like aerospace and industrial equipment. At GSC 3D, we emphasize the importance of integrating solidworks fatigue analysis into CAD workflows to optimize designs for both cost efficiency and durability. According to the NIST Fatigue and Fracture Group, accurate predictions can extend component cycle life by orders of magnitude, from thousands to millions of cycles, underscoring why fatigue simulation is essential for modern manufacturers.

This guide begins with the fundamentals of fatigue principles and progresses to advanced applications in simulation software. We at GSC 3D offer expert simulation support, hands-on training, and seamless integration services to help your team implement these techniques effectively. By mastering durability assessment in CAD, engineers can build safer, more efficient products tailored to real-world demands.

Core Principles of Fatigue in Materials

With fatigue defined as the progressive weakening of materials under repeated loading, let us explore its core principles. At GSC 3D, we emphasize solidworks simulation to help engineers conduct thorough fatigue analysis early in the design process, ensuring manufacturing validation aligns with real-world demands.

Fatigue represents localized damage accumulation in a material subjected to cyclic loading, ultimately leading to crack initiation and propagation until failure occurs. This phenomenon is critical in engineering because components like aircraft wings or engine parts endure millions of load cycles without visible deformation initially. We can illustrate this with a simple analogy: repeatedly bending a paperclip until it breaks, demonstrating how microscopic cracks grow over time. Central to understanding fatigue is the S-N curve, or stress-life curve, which plots the stress amplitude against the number of cycles to failure, derived from standardized testing in resources like the Failure of Materials in Mechanical Design. For instance, ferrous metals often exhibit a fatigue limit below which infinite cycles cause no failure, while non-ferrous materials show no such endurance threshold. This foundational knowledge equips engineers to predict material durability testing outcomes and avoid catastrophic breakdowns in manufacturing applications.

Several key factors influence fatigue life, with stress amplitude and mean stress playing pivotal roles. Stress amplitude determines the range of loading variation, while mean stress shifts the baseline, often reducing endurance when tensile. Other elements include environmental conditions, temperature, and material microstructure, all of which we consider in our simulation workflows. To highlight these:

• Stress amplitude: Higher values accelerate crack growth, as seen in high-load scenarios.
• Mean stress: Positive means (tensile) exacerbate damage, per Goodman diagrams.
• Surface finish: Roughness acts as stress concentrators, promoting early initiation.
• Defects and residuals: Inclusions or uneven heat treatments shorten life cycles.

In manufacturing, distinguishing fatigue types based on stress amplitude is essential for selecting appropriate analysis methods. High-cycle fatigue involves low stresses relative to yield strength over extended periods, whereas low-cycle fatigue features high stresses near yield, resulting in fewer cycles to failure. This differentiation guides design choices for components under varying operational demands.

High-cycle scenarios demand attention to endurance limits, but overall, basic techniques provide the groundwork for reliable predictions. The S-N curve method allows engineers to estimate cycles to failure for a given stress level, often fitted logarithmically as log(N) = a – b * log(S). For cumulative damage under variable loading, we apply Miner’s rule, which sums the ratios of applied cycles to failure cycles: Σ(n_i / N_i) < 1 indicates safe operation. Complementary to S-N is the strain-life approach, useful for ductile materials under plastic deformation. These methods form the basis of fatigue simulation, enabling proactive material assessments.

Comparison of high-cycle and low-cycle fatigue in mechanical design

As we integrate these principles into manufacturing, factors like surface finish and internal defects significantly impact outcomes, often addressed through solidworks fatigue analysis modules. In CAD environments, we simulate these to detect vulnerabilities early, optimizing designs for aerospace or automotive sectors.

In-Depth Techniques for Fatigue Evaluation

Building on core concepts, we now examine specific evaluation methods for fatigue analysis in manufacturing designs. These advanced techniques enable engineers to predict component longevity under repeated loading, ensuring reliability in industrial applications like aerospace and automotive parts.

Stress-Life and Strain-Life Methods

In high-cycle fatigue scenarios, the stress-life (S-N) method relies on S-N curves to correlate nominal stress amplitude with cycles to failure. These curves are constructed by plotting experimental data from constant amplitude tests, often using a semi-logarithmic scale to fit the Basquin equation. For low-cycle fatigue, dominated by plastic deformation, the strain-life (ε-N) approach employs the Coffin-Manson relation, combining elastic and plastic strain components to assess endurance limit assessment more accurately.

Applying these methods involves selecting appropriate curve fits based on material data and applying safety factors to account for data scatter, typically 2-3 for conservative designs. In manufacturing, we use S-N curves for initial sizing of structural beams in equipment, while ε-N methods guide weld joint evaluations where local strains are critical.

• S-N Method Pros: Simple data requirements, ideal for high-cycle regimes; quick implementation in preliminary design.
• S-N Method Cons: Overlooks local plasticity, inaccurate for variable amplitude loading.
• ε-N Method Pros: Captures nonlinear material behavior, suitable for low-cycle and ductile failures.
• ε-N Method Cons: Demands extensive strain measurements, computationally intensive for full assemblies.

Cumulative Damage and Multiaxial Loading

Cumulative damage assessment begins with Miner’s linear damage rule, which sums fractional damages from varying stress levels: D = Σ (n_i / N_i), where failure occurs at D=1. For nonlinear effects, extensions like the SWT parameter incorporate mean stress influences, improving predictions in real-world variable loading. In multiaxial scenarios, criteria such as von Mises equivalent stress or Tresca maximum shear integrate principal stresses, addressing non-proportional paths common in rotating machinery.

We apply these in manufacturing by segmenting load histories into rainflow cycles for damage tallying. A simplified process includes:

1. Extract cycles from load-time history using rainflow counting.
2. For each cycle: Compute equivalent stress (e.g., von Mises).
3. Calculate damage fraction: d_i = n_i / N_i.
4. Sum damages: D = Σ d_i; if D ≥ 1, predict failure.

Integration with CAD Simulation Tools

We integrate these techniques into CAD environments like SOLIDWORKS for seamless virtual testing, where solidworks fatigue analysis modules automate S-N and ε-N curve inputs alongside FEA results. This allows direct mapping of simulation stresses to fatigue life predictions, reducing physical prototypes.

In practice, users define load events and material libraries within the software, running simulia extensions for advanced multiaxial handling, which we support through our FEA consulting services.

Implementing Fatigue Analysis in SOLIDWORKS

Now that the techniques for fatigue analysis are clear, let’s implement them in SOLIDWORKS to enhance your manufacturing workflows. We at GSC 3D often guide clients through solidworks fatigue analysis to predict component failures early in the design phase, saving time and resources in industries like automotive and electronics.

Setting Up a Fatigue Study

To begin a fatigue study in SOLIDWORKS Simulation, start by opening your assembly or part file. Select File > New Study, then choose Static or Frequency as the base study type. For fatigue simulation, define the loading events under the Study Properties dialog; specify mean stress, alternating stress, and the number of cycles expected in real-world use.

Next, assign appropriate materials from the SOLIDWORKS library or import custom properties. Ensure you incorporate S-N curve data for accurate predictions. We recommend selecting materials with validated fatigue properties to align with manufacturing standards. Define the fatigue parameters, such as the endurance limit and safety factor criteria, typically set to 1.5 for critical components.

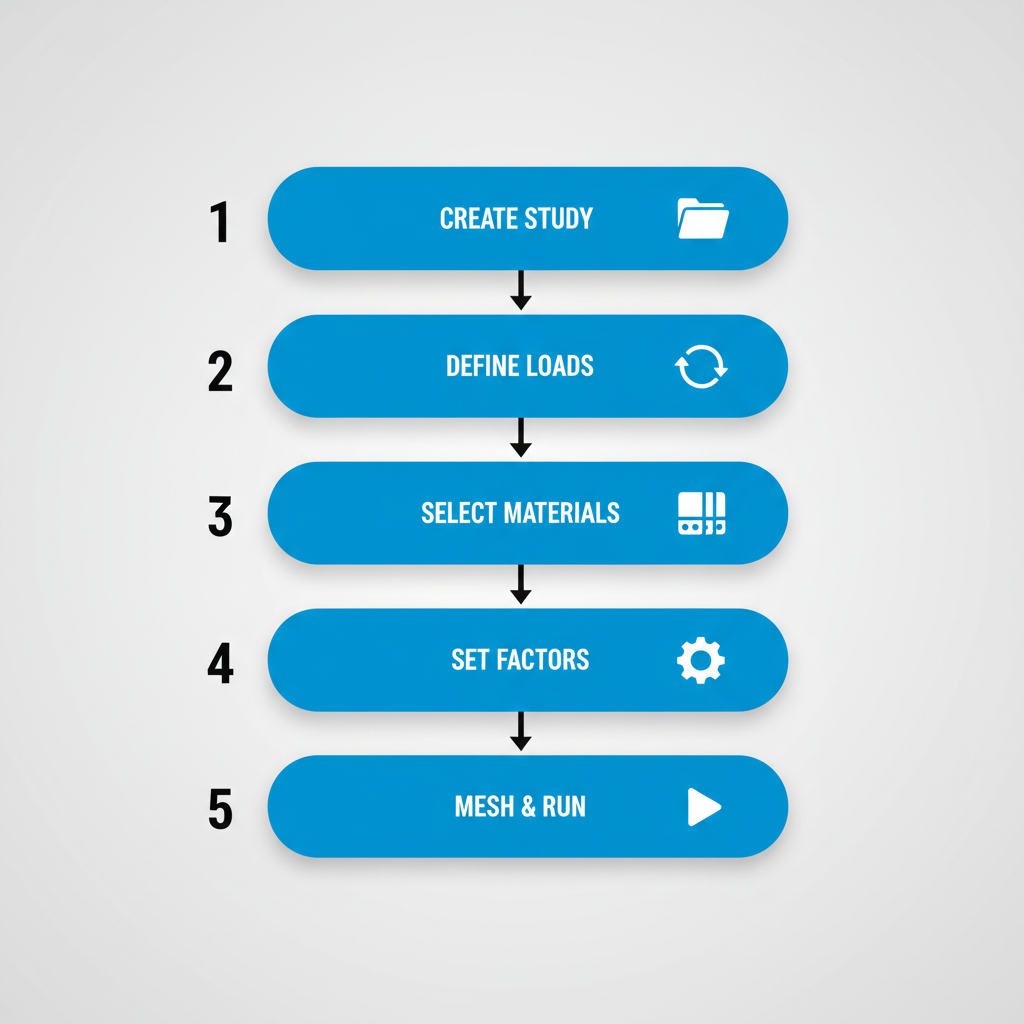

Step-by-step fatigue study setup in SOLIDWORKS Simulation

Running Simulations and Interpreting Results

Once the fatigue study is configured, proceed to mesh the model using a curvature-based element type for precision in stress concentration zones. The simulation typically completes in minutes for mid-sized models, far quicker than physical trials. Review the results in the Results folder: Examine the life plot to identify regions with the fewest cycles to failure, often visualized in color-coded contours where red indicates high-risk areas.

Best Practices for Manufacturing Applications

Integrate fatigue analysis with SOLIDWORKS PDM for version-controlled model management. When linking to DELMIAWorks ERP, automate data transfer for load inputs derived from production schedules, optimizing for real manufacturing cycles.

For deeper expertise, consider our solidworks training programs, which cover advanced simulation workflows. Common pitfalls like ignoring environmental factors can be mitigated through iterative validation, leading to more reliable outcomes in automotive and electronics applications.

Advanced Strategies in Fatigue Simulation

In advanced engineering workflows, fatigue analysis plays a critical role in predicting long-term component durability under repeated loading. At GSC 3D, we support manufacturers transitioning from standard simulations to advanced methods. Nonlinear cyclic analysis, such as the Chaboche kinematic hardening model, accounts for cyclic plasticity that simpler linear models overlook. This approach is essential for materials exhibiting Bauschinger effects, where reverse yielding alters stress-strain behavior.

Probabilistic durability modeling addresses the inherent variability in material properties and loading conditions. Using Weibull distributions, engineers can quantify reliability under scatter, moving designs toward higher margins against rare failures. Hybrid simulations, combining solidworks fatigue analysis with electromagnetic simulation software, are increasingly relevant for electronics enclosures exposed to multifaceted loads.

Key Questions on Fatigue Analysis Answered

What is a SOLIDWORKS simulation fatigue tutorial? A SOLIDWORKS simulation fatigue tutorial guides users through defining load cycles, material properties, and S-N curves in the fatigue module.

What are common errors in fatigue simulation? Common errors include using incorrect S-N data or overlooking mean stress effects, leading to inaccurate life predictions.

How does fatigue simulation apply to manufacturing parts? Fatigue simulation integrates with manufacturing workflows by predicting part durability under real-world loads, aiding design iterations for US manufacturers.

What are the benefits of SOLIDWORKS fatigue failure prediction? SOLIDWORKS fatigue failure prediction identifies potential weaknesses early, reducing downtime and costs. Explore our solidworks courses for hands-on training.

Enhancing Manufacturing Durability Through Fatigue Insights

In summary, mastering fatigue analysis equips manufacturers with essential tools to predict and prevent structural failures in CAD-driven designs. From understanding S-N curves to applying advanced techniques like solidworks fatigue analysis, we have explored practical applications that enhance product longevity.

The benefits are clear: reduced downtime, optimized material use, and innovative durability enhancement strategies. At GSC 3D, our simulation and FEA support empowers teams to achieve simulation mastery and evidence-based designs.
